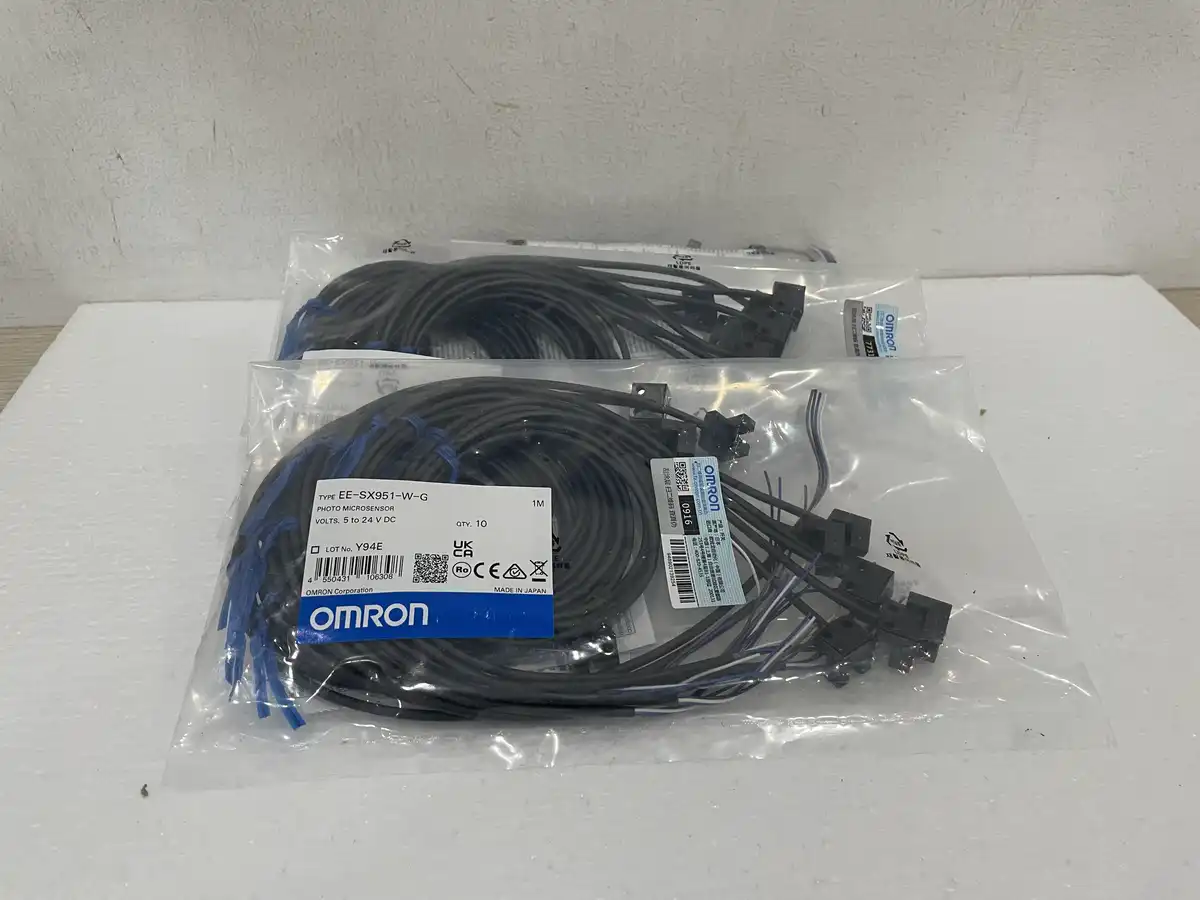

EE-SX951-W-G 1M Ultra-compact Pre-wired Photomicrosensor
SKU: EE-SX951-W-G 1MUltra-compact Pre-wired Photomicrosensor with slot type through-beam sensing and 5mm sensing distance.
Key Features
- Ultra-compact L-shaped slot type design
- Through-beam sensing method with 5mm slot width
- Both Dark-ON and Light-ON operation modes
- NPN open collector output with short-circuit protection
- Pre-wired model with 1m L-shaped cable
Ultra-compact Photomicrosensor for Precision Detection
The EE-SX951-W 1M is an ultra-compact photomicrosensor featuring an L-shaped grooved design with through-beam sensing method. This non-modulated infrared sensor offers reliable detection with a 5mm slot width sensing distance and provides both Dark-ON and Light-ON operation modes. The pre-wired model comes with a 1m L-shaped cable for easy installation in space-constrained applications. With NPN open collector output and robust construction, this sensor is ideal for precision detection in automated equipment and machinery.
Technical Specifications
| Sensing Method | Through-beam type |
|---|---|
| Sensing Distance | Slot width: 5 mm |
| Light Source | Infrared LED (940 nm) |
| Output Type | NPN open collector output |
| Power Supply Voltage | 5 to 24 VDC ±10% |
| Load Current | 50 mA max |
| Response Frequency | 1 kHz min, Average: 3 kHz |
| Operating Temperature | -25 to 55 ℃ |
| Degree of Protection | IP50 |
| Cable Length | 1 m |
